Blackbox Industry 4.0 Gateway
The UTECH BLACKBOX is a patented and award winning Industrial IoT (IIoT) Telematic Gateway with diverse applications to remote monitor and control a wide range of plant and equipment such as factory machinery, energy meters, mining and construction equipment, cold chains, server rooms and many more remotely located machinery.
This device has the capability of interfacing various machinery sensors through analog, digital, 4-20 mA, MODBUS (RS232 and 485) and CANBUS (J1939) and can communicate data to any remote servers using 4GLTE, WIFI, BLE or Ethernet. Additionally the, UTECH Blackbox has the capability to integrate with PLC’s and BMS of various manufacturers.
Due to its flexible hardware and software architecture, the UTECH Blackbox is versatile to integrate universally to any type, make, technology platform or age of equipment and relay real time data, alerts from anywhere in the world.

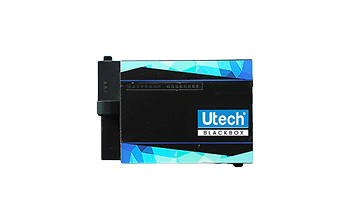

Blackbox Telematic Gateway
Blackbox Telematic Gateway is the latest addition to UTECH’s product range. The device has the required input for individual asset monitoring with a 4G LTE communication engine to ensure faster data communication for real time data analytics for immediate decision making purposes.
The Blackbox 4G LTE is ideal for use cases requiring ultra-fast processing of remote commands from anywhere on the globe.
The device input, output and communication ports has been designed for an optimum application in a medium range requirement. The durable design ensures dust proof for wide range of applications.
Smart Energy Meter
The UTECH Smart Energy Meter is a cost effective IIoT energy metering device capable of remotely monitoring all parameters of a single or 3-phase system with a built in IoT gateway to send monitored energy data to any remote server on real time basis.
The device can accurately monitor all energy parameters just like a conventional power analyzer (voltage, current, KW, KWh, Power factor, THD etc.) but also includes a built in telematic gateway to transmit data through 4G LTE, WIFI, BLE or ethernet to a remote server.
The device also has a built in battery back-up and temperature sensor to keep the device up and transmitting data even during power outages.
Additionally, the UTECH Smart Energy Meter has a built-in RS485 port to connect other Energy meters with RS485 into a single remote monitoring system.
Utech Coollink
The UTECH Coollink is a cost effective IIoT Gateway that is used to monitor temperature and humidity of Cold-rooms, freezers, chillers, server rooms etc. It has the capability of reading 2 temperature sensors or 2 temperature and humidity sensors and monitor the availability of the utility grid. It comes with the 4G LTE GSM connectivity which can post the data to a remote server or communicate directly to the end customer through SMS. The device is easy to install by the customer and comes with a battery backup of up to ensure readings and alerts even during a power cut.
Utech Trackbox
The UTECH Trackbox is a complete remote monitoring solution for On-Road and off-road vehicles.
The Trackbox is the only locally manufactured GPS tracking device that has blanket approval from the TRCSL and Defense Ministry. Such certifications guarantee reliability, data confidentiality and integrity of data.
Other than its highly accurate GPS tracking radio, it has many ports to accept sensors such as fuel, door sensors, temperature and humidity sensors and many more. The Trackbox also has proprietary features that can also monitor engine parameters including oil pressure, coolant temperature etc. Whether your objective is to run a more efficient fleet, improve safety and/or reduce theft, UTECH Trackbox offers full suite of features with robust telematics and analytics at its core to provide key insights for every kilometer your vehicle travels.
Utech Smartnode
The UTECH Smartnode is an award winning Telematic Gateway used for Industry 4.0 transformations. This gateway comes with a full technological stack to monitor complete industrial manufacturing processors to ensure that production meets planned cost, quality and time criteria of both machines and humans of any production line.
This device has the capability of interfacing various machine sensors of production machines whether its manual, semi-automated or fully automated. The device also can interface directly with many makes of PLCs and interpret data and send valuable insights to remote server enabling the user to monitor and make immediate corrective decisions relating to the factory output.
The Smartnode is capable of communicating with other connected smart nodes via its own WIFI mesh network and can communicate data and insights to the outside world through WIFI, Ethernet or 4GLTE. The Device has optional relay outputs to enabling users to remote control machinery from anywhere in the world.
This device is equipped with back-up battery, Over-the-Air (OTA) programming and flashing and internal memory for storing data in case communication with the server is disrupted.
Human Sync Gateway
The UTECH M+H Telematic Gateway is used in diverse applications to monitor manufacturing efficiency in production lines where both machines and humans work together. For example in garment manufacturing both machine performance and human stitching efficiency and quality can be monitored together to ensure that planned productivity and quality is maintained. The device has many I/Os to connect the machine sensors and a built in RFID/NFC reader to record the human ID working on the m
By monitoring both the machine and Human, the machine performance such as productivity and faults can be monitored plus the human operators speed of operating machine, productive time and defect rate as well. By monitoring both human and machine on a real time basis with data logging and alert capabilities, management can be assured of a factory that is running optimally.
